Dettagli:
|
| Scopo: | Taglio inclinato | Applicazione: | Fuoribordo 40 cv |
|---|---|---|---|
| Condizione: | Nuovo | Posizione del motore: | Scaffalature |
| Tipo di carburante: | Benzina | Nome articolo: | Attuatore idraulico per barche |
Why choose Hydraulic-electric actuator
For marine accessory manufacturers or dealers (such as those handling trim tabs and jackplates), this assembly plays an important role:
It adjusts the propeller thrust angle and engine depth to improve the boat’s running attitude.
It helps reduce fuel consumption, increase speed, and stabilize performance in varying water conditions.
When a jackplate or trim tab system is installed, a reliable trim/tilt unit becomes critical to handle the larger movement range and higher loads on the engine mount.
|
40HP |
|
|

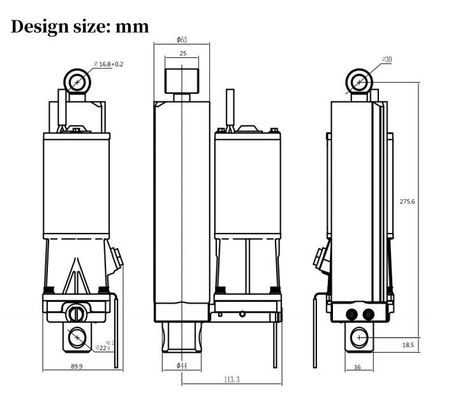

Installation Dimensions: |
Closure dimension 266±2(mm), Opening dimension 412±3(mm) |
|
Overall Dimensions: |
303×145×91(mm) |
|
Weight: |
5KG |
|
Mode of steering: |
Remote control, electric start |
|
Scope of application: |
two stroke and four stroke 20hp, 25hp,40hp, universally for YAMAHA 40hp outboard motor |
|
Color: |
Black |
|
Yamaha OEM: |
65W-43800-02-4D |
1. Search part by OEM part numbers:
65W-43800-01-4D
65W-43800-02-4D
65W-43800-03-4D
65W-43800-20-4D
65W-43800-21-4D
65W-43800-22-8D
65W-43800-23-8D
2.New genuine parts Power Trim & Tilt Assy, 65W-43800-01-4D
65W-43800-02-4D
65W-43800-03-4D
65W-43800-20-4D
65W-43800-21-4D
65W-43800-22-8D
65W-43800-23-8D
3.For Outboard: Yamaha 25, Yamaha 30, Yamaha 40, Yamaha F20, Yamaha F25 FIT F25 F30 4 stroke outboard engine
Disconnect the outboard power supply before installation to prevent accidental activation.
Check hydraulic oil levels or the electric motor’s condition before use.
Inspect all bolts, welds, and brackets for cracks—especially if a jackplate or trim tab is installed, as these increase mechanical load.
Periodically verify that the actuator moves smoothly without binding. Salt, sand, or corrosion can slow operation.
Use trim adjustment wisely at takeoff, cruising, and shallow water operation to avoid cavitation and improve acceleration.
Because a failed trim/tilt assembly can directly affect safety and handling, it is recommended to stock a spare unit for emergency replacement.
